Smila tries to talk to you in various different ways. One of those languages is Smila's light color. It will tell you if everythings fine, if you can expect your medication to be dispensed or just have fun looking at it.
Both the control knob and the LED ring can chnge the colors. In this way it is shown at which point an user action must be carried out.

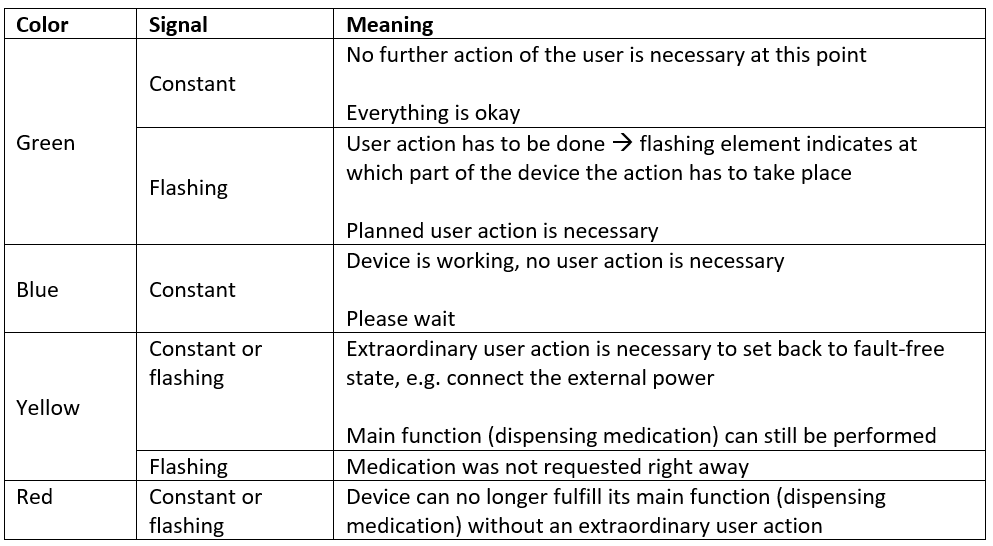

Visual signals in general:

Control knob:

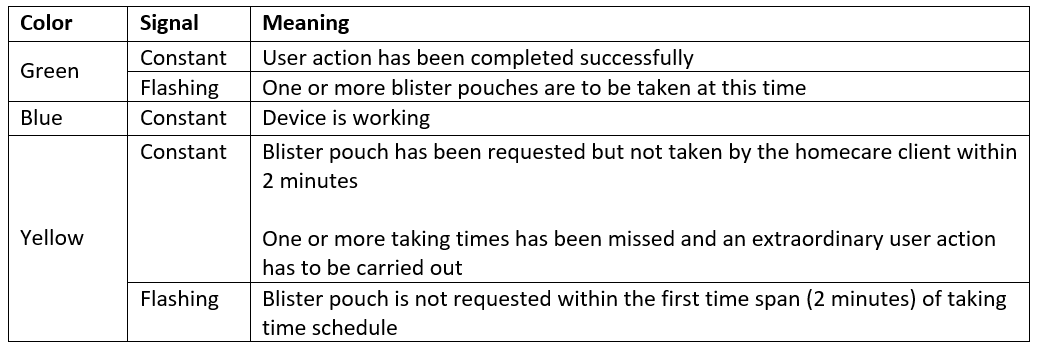

The control knob is an illuminated push button to request the medication and serves as an indication for the state of the device.

LED ring:

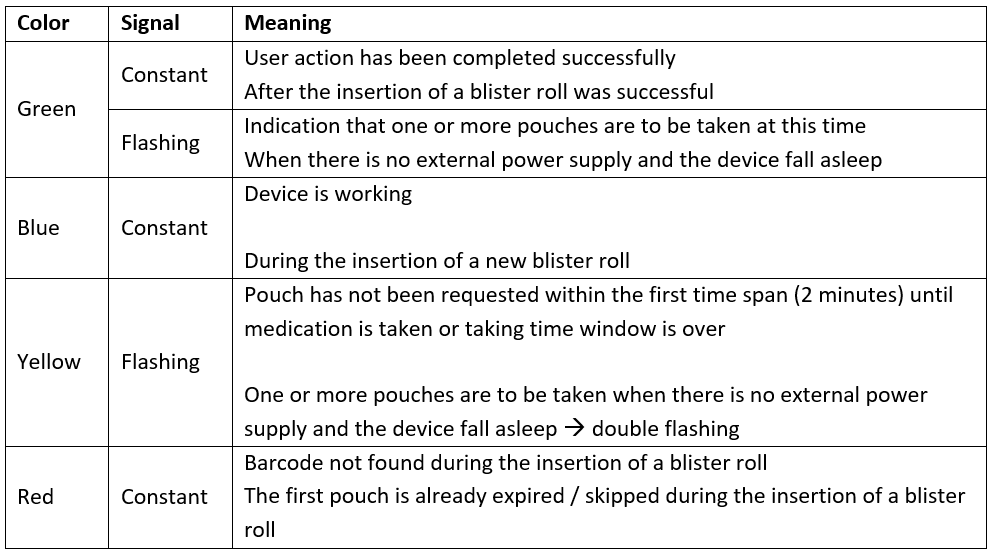

LED ring illuminates the front of the device to indicate the medication intake.
